Torini Supermaxx - Sealed

$2,495.00
Select if you require a complete engine kit or a sealed engine
TX250CEK
In stock
+


DESCRIPTION

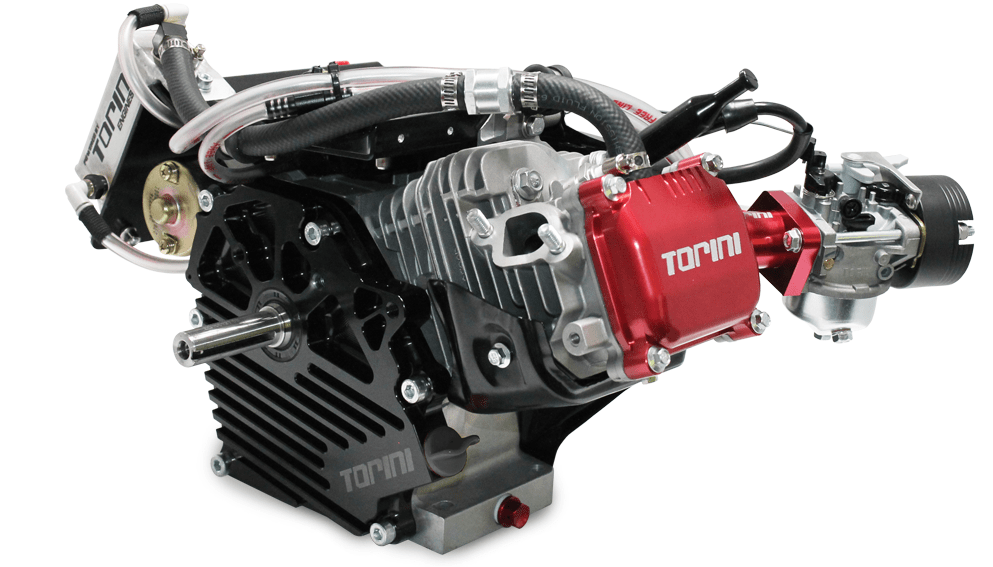

The Supermaxx is a higher performance 4 stroke kart engine suitable for both single and twin engine karts. With a twin bearing CNC billet engine side cover, balanced crank, Torini designed cam, conrod, piston and head its performance is outstanding.

It also has a Torini designed oil separator to turn oil vapour back to liquid before being pumped back into the engine eliminating the need for oil catch cans. Electric start, this engine like the Clubmaxx is factory sealed, low maintenance and easy to use.

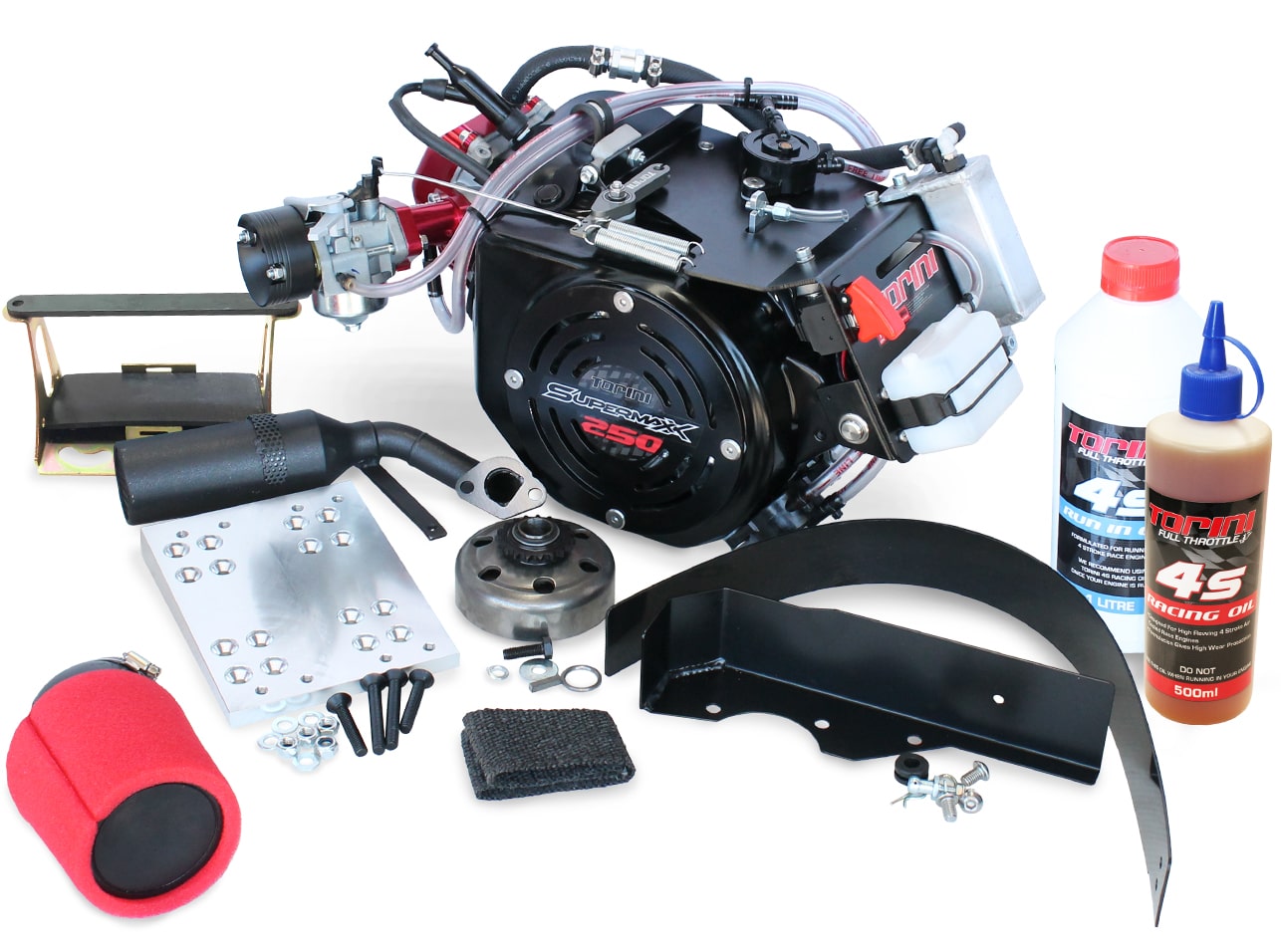

Complete engine kits are available including muffler, chain guard, clutch, mounting plate, air filter and engine oil. This can be ordered through your local dealer under part number TX250CEK.

AVAILABLE NOVEMBER 2018

* Homologation Pending

SPECIFICATIONS

Engine Type:
Single Cylinder, 4-Stroke, Forced Air Cooling, OHV25°
Bore x Stroke (mm)
70 X 55
Displacement (cc): 212
Engine Oil Capacity (ml): 500ml
Starting Mode:
Electric Start
Lubrication Mode:
Splash
Cooling System:
Forced Air Cooling
Fuel:
Premium Unleaded
Ignition System:
T.C.I. Digital Ignition Limited to 7200rpm
Horse Power: 15Hp / 11.2Kw @ 6,600rpm
Torque: 18Nm @ 4,600rpm
Carburettor: 19mm Venturi Butterfly Type (P/N: TC25SEK)
Carburettor Manifold:
CNC Billet Type (P/N: TC25046)
Muffler: RLV - Model TC25060
Clutch: Noram - TC-GEL19219
Noram - TC-GE20219
Spark Plug: NGK - BPR6ES
Timing: 29 Degrees
Compression: 9.9 to 1
Oil: P/N: TRO1031 - Engine Run in Oil
P/N: TRO1000 - Engine Racing Oil
Bolt On Dry Weight: 19.08Kg

HELPFUL HINTS

Jetting Your Carburettor

Jetting Your Carburettor

Clutch Setup

Clutch Setup

Exhaust Pipe Insulation

Exhaust Pipe Insulation

OIl/Run-In Procedure

Oil/Run-In Procedure

OIl/Run-In Procedure

Wet Weather Filter


DOCUMENTATION

Jetting Your Carburettor

Supermaxx Manual

Jetting Your Carburettor

Approved Engine Mounts

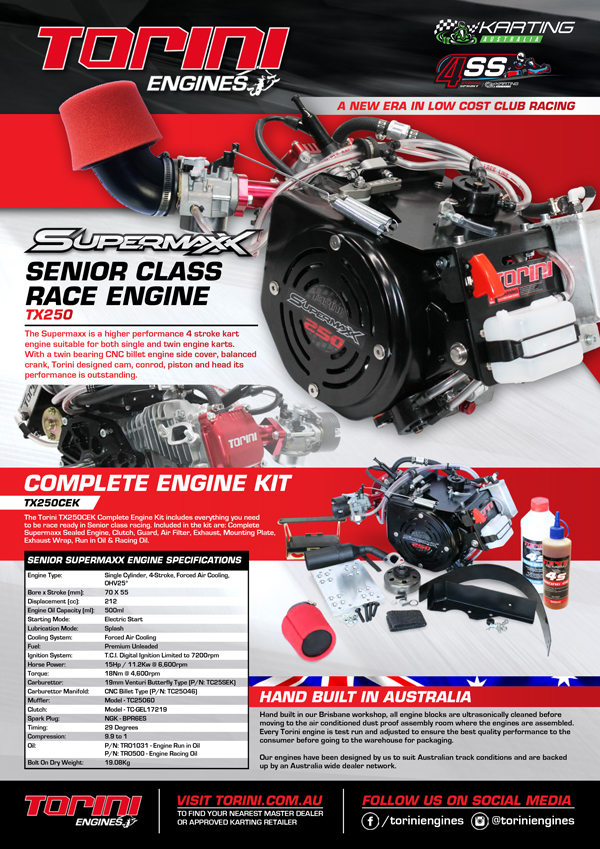

SPECIFICATIONS FLYER

.
