Torini Clubmaxx - Cadet - Sealed

$1,550.00
Select if you require a complete engine kit or a sealed engine
TC210CEK-C
In stock
+

DESCRIPTION

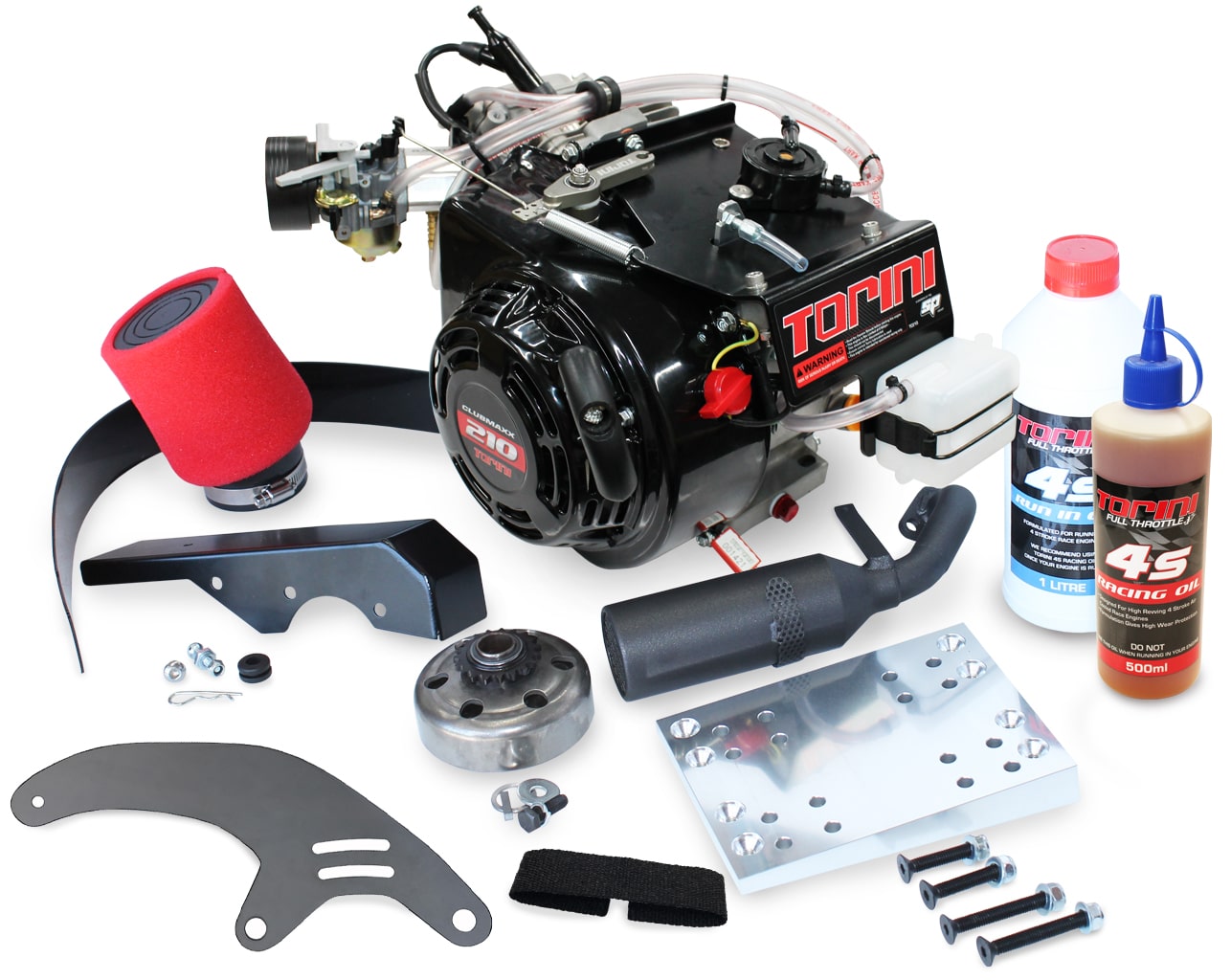

The Torini TC210CEK-C Complete Engine Kit comes out of the box with four Torini engine seals approved to race in Karting Australia’s , 4SS class and 4SE Club day racing. The engine is shipped without oil. Oil must be added before starting. We recommend first running in your engine with Torini 4S Run In Oil and then switching over to Torini 4S Racing Oil to ensure the highest possible protection and performance is achieved.

You will find helpful hints on how to get started with your Torini engine at the bottom of this page.

  • Karting Australia homologated engine - No. 109H
  • Key internal engine components ultrasonically cleaned before assembly
  • Hand built in Australia by Austech Industries Pty Ltd using local and imported high quality forged and billet components, suitable for both single engine sprint racing and single engine endurance racing.

Approved for 4SS Class racing by Karting Australia

SPECIFICATIONS

Engine Type:
Single Cylinder, 4-Stroke, Forced Air Cooling, OHV25°
Bore x Stroke (mm)
70 X 55
Displacement (cc): 212
Engine Oil Capacity (ml): 500ml
Starting Mode:
Pull Start
Lubrication Mode:
Splash
Cooling System:
Forced Air Cooling
Fuel:
Premium Unleaded
Ignition System:
T.C.I. Digital Ignition Limited to 6100rpm
Horse Power: 9Hp / 6.7Kw @ 5,400rpm
Torque: 14Nm @ 3,000rpm
Carburettor: 16.5mm Venturi Butterfly Type (P/N: TC25TECK)
Carburettor Manifold:
CNC Billet Type (P/N: TC25045)
Muffler: RLV - Model TC25060
Clutch: Noram - TC-GEL19219
Noram - TC-GE20219
Spark Plug: NGK - BPR6ES
Timing: 25 Degrees
Compression: 8.5 to 1
Oil: P/N: TRO1031 - Engine Run in Oil
P/N: TRO1000 - Engine Racing Oil
Bolt On Dry Weight: 16.94Kg

HELPFUL HINTS

Jetting Your Carburettor

Jetting Your Carburettor

Clutch Setup

Clutch Setup

Exhaust Pipe Insulation

Exhaust Pipe Insulation

OIl/Run-In Procedure

Oil/Run-In Procedure

OIl/Run-In Procedure

Wet Weather Filter


DOCUMENTATION

Jetting Your Carburettor

Clubmaxx Manual

Clutch Setup

Engine Homologation

Exhaust Pipe Insulation

Clutch Homologation

OIl/Run-In Procedure

Exhaust Homologation

OIl/Run-In Procedure

Adaptor Plate Homologation

Jetting Your Carburettor

Approved Engine Mounts

Jetting Your Carburettor

Wet Weather Kit Homologation


SPECIFICATIONS FLYER

.
